At fab audio, our designs employ intriguing shapes, uncommon materials and unique topologies with one goal in mind… to create products with a rare degree of musicality and performance. All our products are meticulously hand crafted and thoroughly tested.

The high efficiency and remarkable transient response found in the better loudspeaker systems of the 1940’s and 50’s is taken to a new level of refinement by the application of modern material, design and measurement technologies.

Our challenge is to produce state of the art loudspeaker systems with the inner detail, low distortion and coherence of the best electrostatic loudspeakers as well as the high efficiency; high power handling and neutral tonal balance of advanced dynamic drivers. We feel that all our designs comfortably meet these conflicting goals

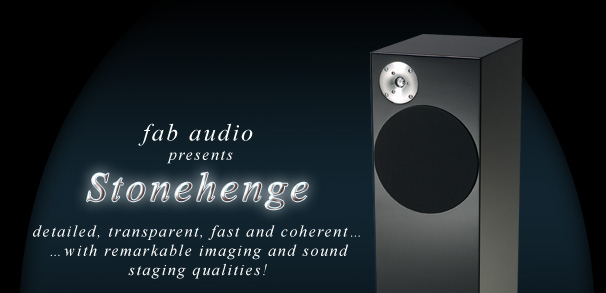

The “Stonehenge” is a compact, floor standing column loudspeaker using the same drivers as our flagship “ Model 1”. Its modern design, braced laminate construction and mirror like gloss finish combine to create a true audio sculpture. The Stonehenge is also available in our less expensive sandstone finishes.

We use the most efficient, non-horn loaded drivers we can source in an unusual 10” 2way design. At 96db/w/m and a 36Hz bass roll off we have created a truly coherent and detailed full range, high efficiency loudspeaker system with the remarkable ability to take you back to the live event.





Specifications

Speaker type - Floor standing tower, with a dynamic 2 way speaker system and bass reflex loading
Continuous power rating - 150 Wrms system power
Frequency response - 38 Hz – 20kHz +/- 3db
Efficiency - 96 db/w/m
Recommended amplifiers - 1.75 – 300 Wrms into 8 ohm
Crossover frequency - 2,200 Hz acoustic
Impedance - 8 ohms nominal with minimal impedance variation
Dimensions - 11 ¼”w x 13 ½”d x 43 ½”h
- 29cm w x 34cm d x 110cm h
Net weight - approx 80lbs, 36kgs
Cabinet - Front wall constructed with a proprietary 1 ½” / 37mm laminate of MDF, plastic and cotton, that has a broadband attenuation of 46 db
 - Select panels are damped with a lead, rubberized bitumen laminate
- Extensive internal bracing used throughout
- Isolated crossover compartment
Crossover - Audiophile, premium grade components and wiring tuned for a smooth frequency response with minimal off axis variation and low system distortions
Woofer - 10” / 25cm, 200 Wrms driver with cast basket, rough molded heavy paper cone, doped and pleated cloth surround, massive focused 90oz. magnet and 3” / 75mm voice coil - Linear Xmax of +/- 4.5mm
Tweeter Precision machined aluminum faceplate with phase plug, aluminum dome, braided lead wires and a powerful magnet system without liquid cooling for maximum transient performance and efficiency
